KCB、2CY型齿轮油泵安装尺寸
|
型号 |
电动机 |
A |
B |
C |
D |
E |
G" |
L |
|
型号 |
功率 |
|
KCB18.3 |
Y-90L-4 |
1.5 |
583 |
300 |
230 |
130 |
79 |
3/4" |
230 |
|
KCB33.3 |
Y-100L1-4 |
2.2 |
618 |
325 |
285 |
140 |
79 |
3/4" |
250 |
|
KCB55 |
Y-90L-4 |
1.5 |
588 |
300 |
230 |
130 |
86.5 |
1" |
230 |
|
KCB83.3 |
Y-100L1-4 |
2.2 |
658 |
325 |
285 |
140 |
99 |
3/2" |
250 |
|

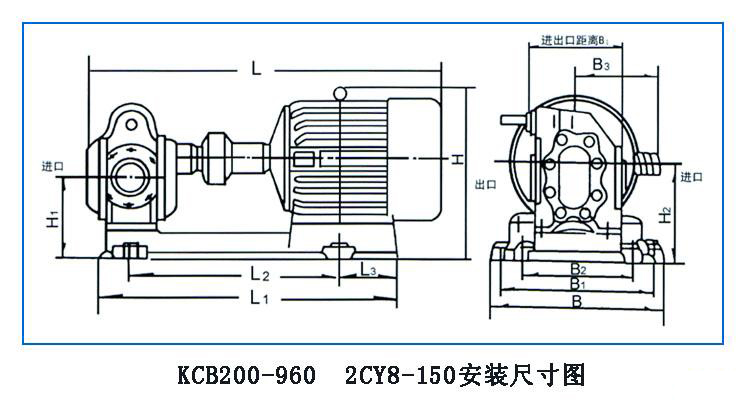

型号 |
L |
L1 |
L2 |
L3 |
H |
H1 |
H2 |
B |
B1 |
B2 |
B3 |
|
KCB-300 |
855 |
690 |
470 |
100 |
413 |
188 |
230 |
410 |
370 |
315 |
210 |
|
KCB-483.3 |
855 |
690 |
470 |
100 |
413 |
188 |
230 |
410 |
370 |
315 |
210 |
|
KCB-200 |
800 |
655 |
450 |
116 |
315 |
182 |
220 |
380 |
340 |
250 |
210 |
|
KCB-633 |
1116 |
898 |
570 |
163 |
510 |
210 |
305 |
440 |
390 |
280 |
237 |
|
KCB-960 |
1156 |
941 |
600 |
176 |
555 |
210 |
305 |
460 |
410 |
280 |
237 | |
|
|
